TourPlanner

A web app for planning tours and keeping logs of the trips you have done. Create a tour between two places, see the route drawn on a map, and write logs with rating, difficulty and a photo.

Team 2 students (with Matej Krsteski)
Course Software Engineering, UAS Technikum Wien
Tests 35 backend unit tests

See the code on GitHub

Illustration of a hiker in the mountains

The assignment

Build a two-tier tour planner in a team of two, with Angular in the frontend and Spring Boot or ASP.NET in the backend. All must-have requirements were met, plus our own unique feature.

Layered architecture (presentation, business, data access)
MVVM in Angular and a reusable UI component
PostgreSQL through an O/R mapper, images on the file system
OpenRouteService and Leaflet integration
Logging with Log4j2 and config kept out of the code
20+ unit tests (we wrote 35)
Documented with UML diagrams and wireframes
Unique feature: per-tour image gallery

What it does

Real routes
Distance and travel time come from OpenRouteService, and the route is drawn on a Leaflet map.
Tour logs
Each log has date, comment, difficulty, distance, time, a 1–5 rating and one photo.
Image gallery
Photos from all logs on a tour are gathered in one gallery you can flip through.
Search & export
Full-text search across tours and logs, plus JSON import and export.

How it is built

Backend

Java 21 and Spring Boot, split into controller, service and repository layers
PostgreSQL with Spring Data JPA and Hibernate
Login with Spring Security and JWT tokens
Bean Validation on all input, logging with Log4j2
Unit tests with JUnit and Mockito, no database needed

Frontend

Angular with standalone components
MVVM: signal-based ViewModels hold the state
Leaflet hidden behind a Facade service
Interceptors send the token and handle errors

Java
Spring Boot
PostgreSQL
JPA / Hibernate
JWT
Angular
Leaflet
OpenRouteService
JUnit
Mockito

My part

We split the work between us. My main areas were:

Frontend screens and ViewModels
Writing the backend unit tests
Full-text search, JSON import/export and the computed values for popularity and child-friendliness
Project setup and planning

From sketch to app

We started with hand-drawn sketches for desktop and mobile, then made a wireframe of the main screen.

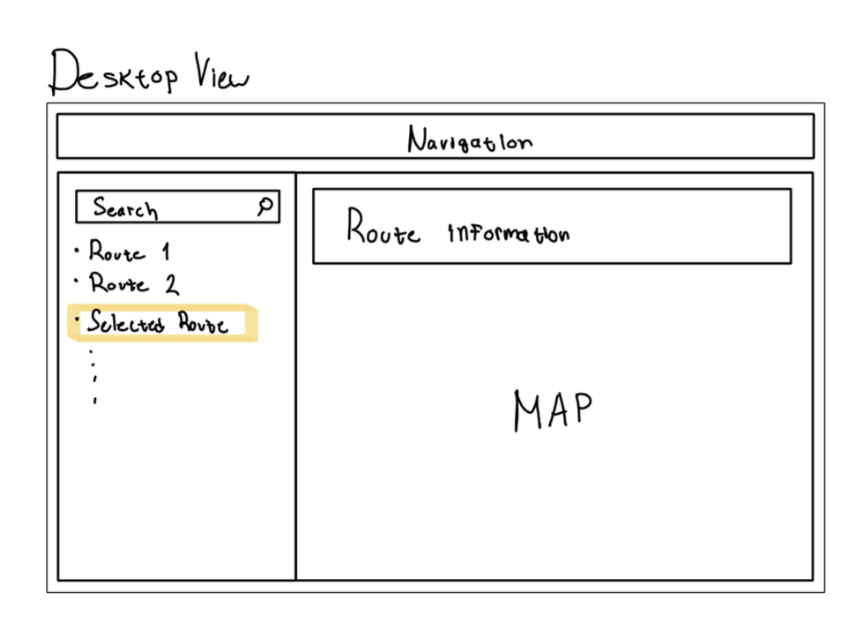

Hand-drawn sketch of the desktop view with search, route list and map — Desktop sketch

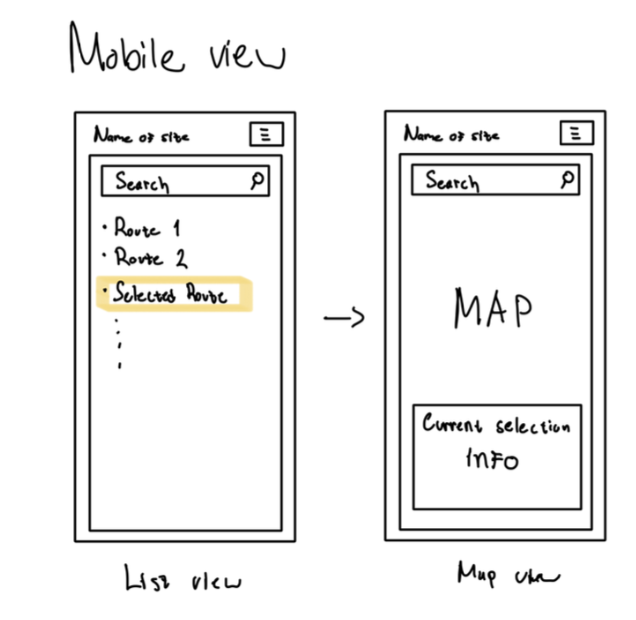

Hand-drawn sketch of the mobile view with list and map — Mobile sketch

Wireframe of the main screen with tour list, map, tour details, logs and image gallery — Wireframe of the main screen

Challenges & what I learned

Searching for values that are not in the database

Problem: Tours have a popularity and a child-friendliness rating, worked out from the logs each time. Since they are never stored, a database query can't search them, so searching for "child-friendly" found nothing.
What I chose: Search in two passes. First a JPQL query over stored fields and log comments, then a filter in the service layer over the computed labels, merging the results without duplicates.
Why: Storing the values would mean keeping them in sync every time a log changes. Computing them on request keeps one source of truth, at the cost of a little more work per search.
